Earthing is the process of creating an alternating path for the flow of fault or excessive current safely into the ground.

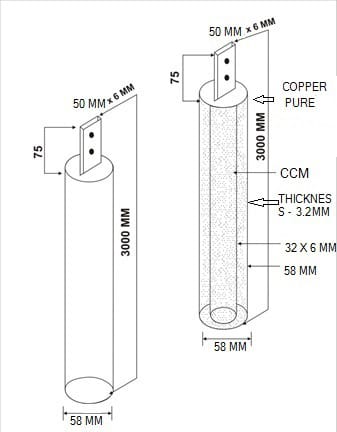

Earthing electrodes are made up of specific class hot dip galvanized iron pipe. The construction of electrodes done such a way that current will get passed through it to earth. The cavity between outer pipe and inner pipe is filled with highly conductive and non-corrosive compound. This type of earthing arrangement requires no maintenance so called as “Maintenance free earthing.”
In this we are introducing “Pipe in pipe” and “Strip in pipe” technologies and manufactured according to standards. Relying on the breakthrough performance, our Earthing Electrode is appreciated among our clients for unsurpassed characteristics. It is a premium quality range that is extensively demanded in transmission & distribution system, telecommunication, data processing center, heavy industry, transformer neutral earthing and food processing sector. These electrodes are designed for prevent any damage to several equipment while passing the electric current into the ground. In a way that minimizes physical effort and maximizes efficiency designed Earthing Electrodes are easily available to our clients in different specifications at most economical rates.
| Electrode Length | 1 mtr, 2 mtr, 3 mtr |
| Outer Diameter | 40 mm, 50 mm, 80 mm, 88 mm |
| Material | Galvanized Iron (GI) |
| Technology | Pipe in pipe or Strip in pipe |
| Galvanization on Outer Pipe | 70-150 Micron |
| Application | Application Industrial, Commercial, Domestic Earthing |
| Brand | Powertech Earthing Solutions |
| Origin | Made in India |

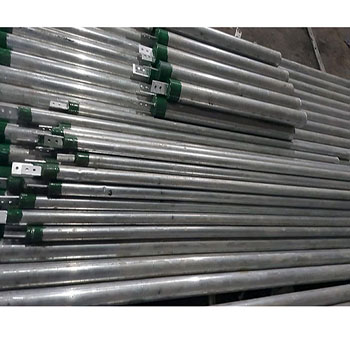

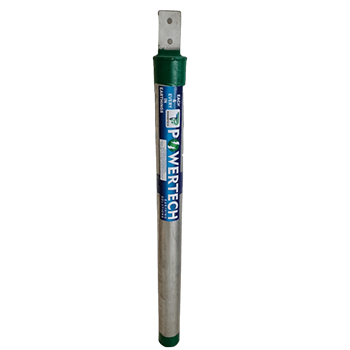

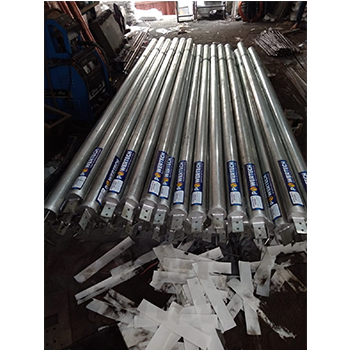

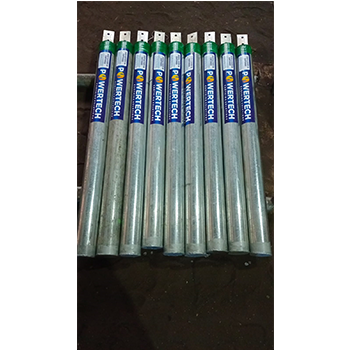

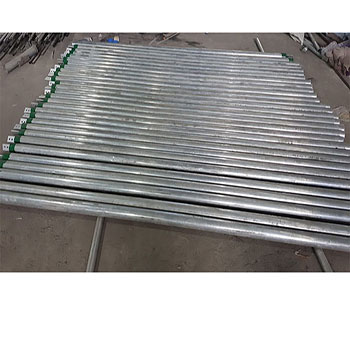

Equipment earthing serves a purpose of electrical safety in an electrical fault. Its main purpose is to prevent equipment damage and the risk of electric shock. These electrodes are made from the hot dip galvanized pipe for corrosion protection. These are designed for fast fault current dissipation, having low maintenance at site. GI Electrodes are easy to install on site. GI Electrodes are most suitable for soil condition where soil having medium resistivity.
| Electrode Length | 1 mtr, 2 mtr, 3 mtr |
| Outer Diameter | 40 mm, 50 mm, 80 mm, 88 mm |
| Material | Low Carbon Steel Pipe |
| Technology | Pipe in pipe or Strip in pipe |
| Copper Coating on Outer Pipe | 100-250 Micron |
| Application | Industrial, Commercial, Domestic Earthing |
| Brand | Powertech Earthing Solutions |
| Origin | Made in India |

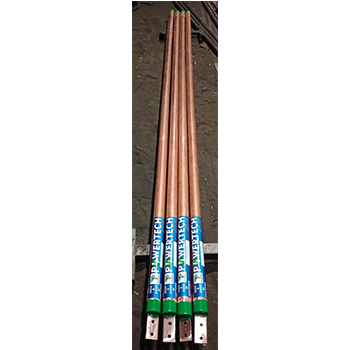

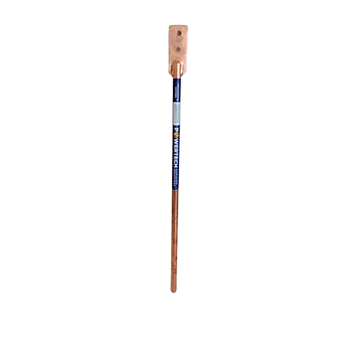

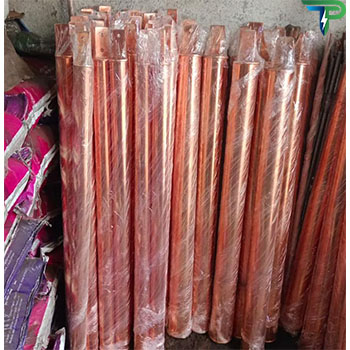

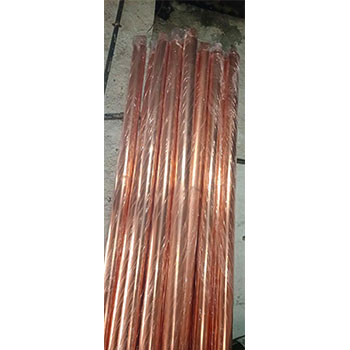

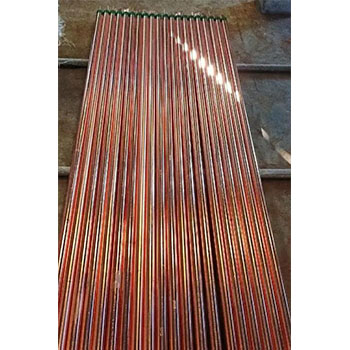

It is made from low carbon steel and high tensile strength cores. The layer of copper is coated on outer surface of pipe through an electrolysis process, which ensures a perfect and strong bonding between low carbon steel pipe and copper. Copper Bonded Electrodes are highly conductive due to copper layer on outer surface. Upto 250 Microns copper coating on electrode. Continuous electroplating over the electrode results good conductivity at outer surface. Due to copper coating they have longer life and cost is effective.
| Electrode Length | 1 mtr, 2 mtr, 3 mtr |
| Outer Diameter | 50 mm, 80 mm |
| Material | Pure Copper |
| Technology | Pipe in pipe or Strip in pipe |
| Application | Highly Sensitive Equipment’s Earthing |
| Brand | Powertech Earthing Solutions |
| Origin | Made in India |

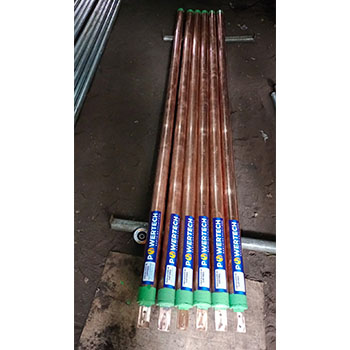

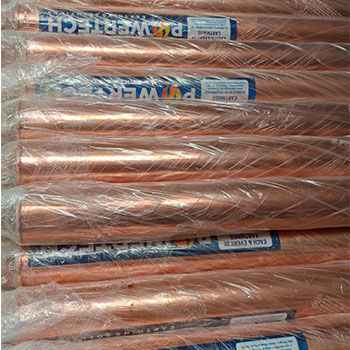

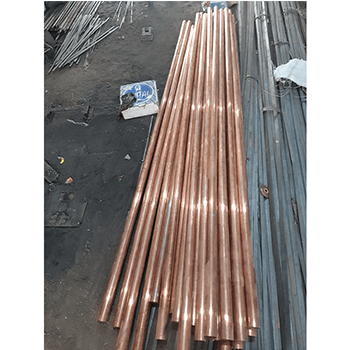

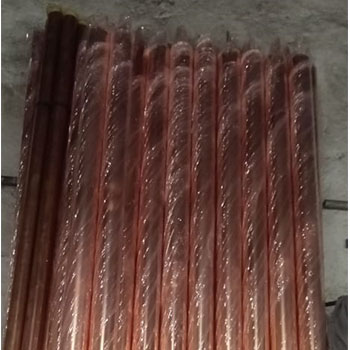

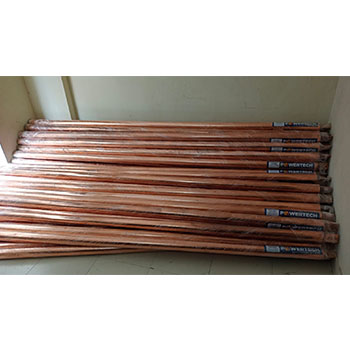

Pure Copper Earthing Electrodes or Pure Solid Copper Rods are made from the 99.99% pure Copper material. Pure Copper Electrodes are Non-Magnetic and having highly corrosion resistivity and high conductivity to fault or excessive current. These are designed for the very fast fault current dissipation to earth. Pure Copper Electrodes have no maintenance cost at site and can be easily installed.
| Electrode Length | 1 mtr, 2 mtr, 3 mtr |
| Outer Diameter | 14.2 mm, 17.2 mm, 19 mm, 25 mm, 32 mm |
| Material | Solid Low Carbon steel |
| Technology | Solid Rod |
| Copper Coating on Outer Surface | 100-250 Micron |
| Application | Industrial, Commercial, Domestic Earthing |
| Brand | Powertech Earthing Solutions |
| Origin | Made in India |

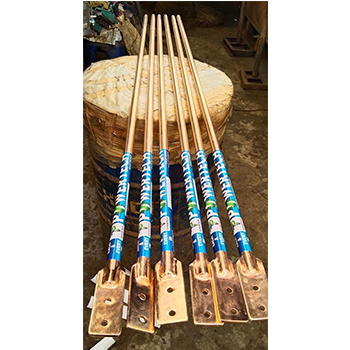

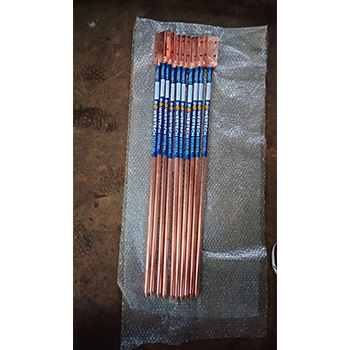

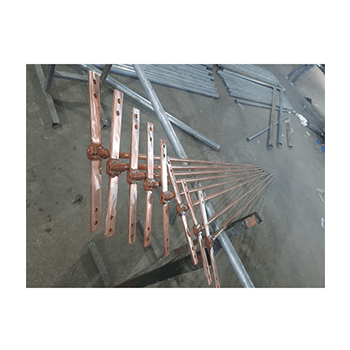

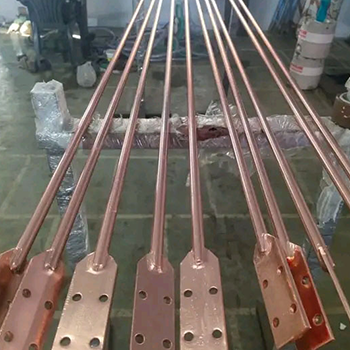

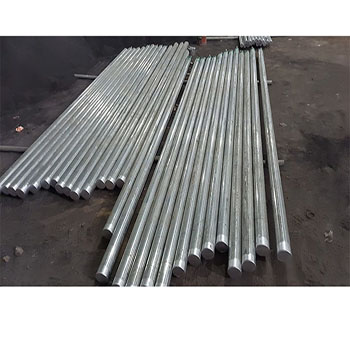

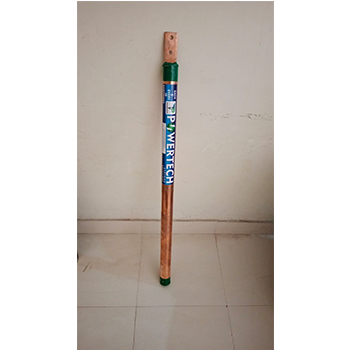

It is made from low carbon steel and high tensile strength rods. Copper Bonded rods are made in different type of varieties according to customer demand with the incorporation of innovative design and implementation of cutting edge technology.
Copper Bonded Rods are suitable for any type of soil having medium soil resistivity. These are majorly used in the solar projects for the earthing of structure and lightning protection system. It has good tensile strength and effective performance. Copper Bonded rod has long life and easy for installation. It requires low space for installation.
